In modern casting processes, zirconia ceramic foam filters are playing an increasingly important role. As a high-temperature casting filter, it is designed for metal melt purification. This seemingly simple porous ceramic material actually contains the exquisite design of material science, providing a double guarantee for the quality improvement of metal castings.
The choice of zirconia (ZrO₂) as the base material of the filter is by no means accidental. This special ceramic material shows amazing stability at high temperatures and can maintain structural integrity in extreme environments of 1760°C. Even more amazing is that by adding an appropriate amount of stabilizer, material scientists have successfully overcome the defect that zirconia is prone to cracking when the temperature changes, making it have excellent thermal shock resistance.

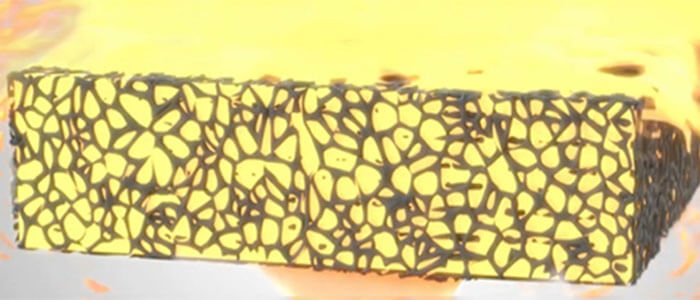

Three-dimensional structural design of Zirconia Ceramic Foam Filters in Casting
The core of the filter lies in its unique three-dimensional mesh structure. This structure is not a simple random pore, but a carefully designed gradient pore size distribution. A larger aperture is used near the entrance, which can not only ensure the smooth passage of the molten metal, but also initially intercept larger impurities; as the molten metal goes deeper, the aperture gradually decreases, achieving fine filtration of tiny inclusions. This design concept is similar to the hierarchical filtration system in nature, which not only ensures filtration efficiency but also avoids premature clogging.
Filtration function principle
Purification function: The filter can effectively intercept inclusions in the molten metal, which is equivalent to setting up a “security gate” for the molten metal, and keeping out “dangerous elements” that may affect the quality of the casting.
Flow regulation: Even more cleverly, it can also transform the molten metal from a turbulent turbulent state to an orderly laminar state. This transformation not only reduces the turbulent defects on the surface of the casting, but also improves the filling uniformity of the molten metal, which can be called a “flow regulator” in the casting process.
In-depth exploration of application value
In the field of high-end casting, the value of zirconia foam ceramic filters is particularly prominent. Taking the casting of aircraft engine turbine blades as an example, after using this filter, the qualified rate of castings can be increased by 15-20%, and internal defects can be reduced by more than 30%. This improvement is not only reflected in product quality, but also translated into significant economic benefits.
Future Prospects of Technological Development
At present, zirconia foam ceramic filters are still in the stage of technological improvement, and 3D printing technology is bringing new development opportunities for foam ceramic filters. Through digital design, precise control of pore structure can be achieved, and even exclusive filtration solutions can be customized according to different casting needs. This personalized customization capability indicates that foam ceramic filters will enter a new stage of development.
Conclusion:
This seemingly ordinary foam ceramic material is playing an increasingly important role in the casting field. With the continuous advancement of technology, we have reason to believe that zirconia foam ceramic filters will continue to bring more surprises to the casting industry.
