Sand holes—those frustrating cavities filled with or lined with sand particles—are one of the most common and costly defects in iron foundries. While the initial instinct is to blame the mold or core sand alone, the truth is more complex. Often, the root cause lies not just in the mold, but within the molten metal itself.
This article explores the critical, yet frequently overlooked, link between metal cleanliness and the formation of sand holes, providing a clearer path to effective prevention.
What is a “Sand Hole” and How Does it Form?
A sand hole (or sand inclusion) is a cavity on or within a casting that contains loose or sintered sand. The traditional explanation focuses on mechanical erosion: the molten metal stream washes away sand from the mold or core walls, and these dislodged particles are then trapped in the solidifying metal.
However, this is only part of the story. A more insidious mechanism involves metallurgical adhesion.
The Critical Link: Dirty Metal and Sand Erosion
The cleanliness of your iron profoundly affects how it interacts with the sand mold. Here’s the crucial connection:
Slag and Oxides as a Glue: When molten iron contains excessive slag, dross, or macro-oxides (a state of “dirty metal”), these non-metallic inclusions have a chemical affinity for the silica (SiO₂) in the molding sand.
Enhanced Adhesion: Upon contact with the mold wall, these inclusions can act as a bonding agent. They adhere to sand grains more tenaciously than clean molten iron would.
The Result: Instead of simply flowing past, the dirty metal pulls sand grains off the wall. The flowing metal then carries these captured sand particles into the casting cavity, where they become entrapped as sand holes. Essentially, dirty metal drastically increases the risk and severity of sand erosion.
The Two-Pronged Attack on Sand Holes
Therefore, preventing sand holes requires a dual strategy: protecting the mold and cleaning the metal.
Prong 1: Strengthen the Mold (The Common Approach)
This involves good foundry practice:
-
Using quality, high-strength sands and binders.
-
Applying effective mold coatings (paints/washes) to create a refractory barrier.
-
Designing gating systems to minimize direct impingement and turbulent flow against vulnerable sand surfaces.
Prong 2: Cleanse the Metal (The Often-Missing Link)
This is where metal cleanliness becomes paramount. You must remove the inclusions that promote sand adhesion before the metal enters the mold. This is achieved through in-stream filtration.
How Filtration Acts as Your Primary Defense

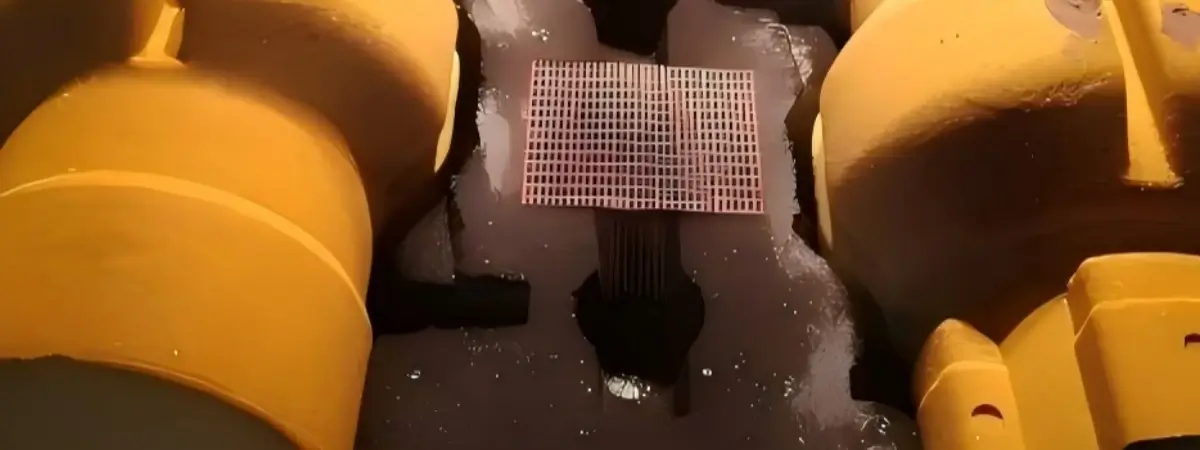

Installing a high-temperature filter mesh (like a high-silica fiberglass mesh) in your gating system is the most direct method to attack the root cause.
-
Interception: As the metal flows through the filter, it captures the macro-inclusions—slag, dross, and oxide clusters—that are responsible for bonding to sand.
-
Delivering Clean Metal: The metal that enters the mold cavity is significantly cleaner. With the “glue” removed, its ability to erode and pull away sand grains is dramatically reduced.
-
Promoting Laminar Flow: A well-designed filter also calms the metal stream, further reducing turbulent, erosive flow against mold walls.
The Outcome: Even if the mold has areas of marginal strength, cleaner, calmer metal is far less likely to create a sand hole. Filtration addresses the problem at its source.
Practical Implementation: Where and How to Filter
To maximize this benefit, filter placement is key:
Optimal Location: Place the filter in the sprue well or in the runner system. This ensures all metal is cleaned before it reaches the vulnerable mold cavity.
Correct Specification: For iron, use a mesh grade rated for 1450°C+. A mesh size of 1.5×1.5mm or 2.0×2.0mm is typically effective for trapping the inclusions that contribute to this problem.
Case in Point: The Evidence
Foundries that have integrated filtration into their process for other reasons (e.g., reducing slag holes) often report a secondary, significant reduction in sand-related defects. This is not a coincidence—it is direct evidence of the metal cleanliness link. By removing the bonding agents, they unintentionally solved a second major problem.
Conclusion
Stop viewing sand holes as purely a molding sand problem. Start seeing them as a symptom of overall process health, with metal cleanliness as a major contributing factor.
A robust sand system is vital, but it is a defensive wall. Filtration is your proactive shield, ensuring the “attack” (the molten metal) is less damaging in the first place. By committing to cleaner metal through reliable in-stream filtration, you protect your molds, your yields, and your profitability from one of the foundry’s most persistent defects.
