In sand casting, the gating system is the pathway through which molten metal travels to fill the mold cavity. Its design is arguably the most critical factor determining whether a casting will be sound or defective. A poorly designed gating system in sand casting can introduce turbulence, trap gas, erode the mold, and allow slag to enter the casting—leading to scrap, rework, and increased costs.
Over decades of foundry practice and research, a set of fundamental rules has emerged to guide engineers toward optimal gating design. Perhaps most notably, Professor John Campbell’s “10 casting rules” have become a cornerstone of modern foundry practice, emphasizing the prevention of entrainment defects. This article synthesizes those principles into ten actionable rules for designing gating systems in sand casting.
Rule 1: Calculate the Correct Gating Ratio
The gating ratio—the proportional relationship between the cross-sectional areas of the sprue (downsprue), runner, and gates—is fundamental to system performance. This ratio determines whether the system is pressurized or unpressurized, which directly affects flow behavior.
Pressurized systems (where the total gate area is the smallest cross-section) keep the system full of metal, reducing aspiration, but can create high-velocity jets and turbulence at the gates. These are common for cast iron.
Unpressurized systems (where the smallest area is before the gates) slow the metal as it enters the cavity, minimizing turbulence and oxidation. These are preferred for metals sensitive to oxidation, such as aluminum and ductile iron.
Typical ratios:
-
For cast iron (pressurized): 1:0.75:0.5 (sprue:runner:gates)
-
For aluminum/oxidizing metals (unpressurized): 1:2:2 to 1:4:4
The general principle: the sum of all gate areas should be at least equal to, or preferably greater than, the narrowest sprue area to avoid spraying effects and turbulence.
Rule 2: Design a Tapered Sprue
The sprue (downsprue) must be tapered—wider at the top and narrower at the bottom. This taper is essential because molten metal accelerates as it falls due to gravity. Without tapering, the accelerating metal would pull away from the sprue walls, creating a vacuum that aspirates air and mold gases into the stream.
Design principle: The sprue should maintain a full, liquid column throughout its length. This requires that the cross-sectional area decreases in proportion to the increasing velocity (Bernoulli’s principle). A thin cross-section helps the sprue fill quickly, preventing air entrainment and folding.
Rule 3: Control Gate Velocity
Excessive velocity at the gate is one of the primary causes of turbulence, mold erosion, and oxide formation. Research has established clear velocity limits for quality castings.
The critical velocity: The meniscus velocity at the gate should never exceed 0.5–1.2 m/s for most alloys. Above this threshold, the liquid metal surface becomes unstable, folding over and entraining oxide films (bifilms) into the bulk liquid. These bifilms become crack initiation sites and weaken the finished casting.
For aluminum alloys specifically, Campbell recommends gate velocities below 0.8 m/s to prevent surface film entrainment.
Rule 4: Use Filters Strategically
Ceramic filters are not optional accessories—they are essential components of a well-designed running system. Filters serve two primary functions:
-
Velocity reduction: Filters break the flow into smaller streams, reducing velocity and turbulence
-
Inclusion removal: They trap slag, dross, and eroded sand before these contaminants enter the cavity
Research confirms that designs incorporating filters significantly enhance the quality of the final cast product compared to basic systems without filtration. Filters can be positioned high (near the sprue) or low (near the gates), depending on the design objectives.
Important: Filter placement and design must be carefully considered, as molten metal jets can form downstream of filters, potentially creating additional oxides.
Rule 5: Select the Appropriate Gate Type
Different gate geometries produce different flow behaviors. Two specialized designs have proven particularly effective for minimizing entrainment defects:
Vortex Gate (VG): This design redirects flow and simultaneously reduces metal velocity before it enters the mold cavity. Often combined with a filter on top of the vortex cylinder, it prevents bubbles from entering the mold.
Trident Gate (TG): Considered the most effective gating system ever designed, the trident gate incorporates two filters (one horizontal, one vertical) along with a bubble trap. CFD simulations confirm that this design outperforms all others in reducing air entrainment and surface defects.
Rule 6: Incorporate an Offset Step Pouring Basin

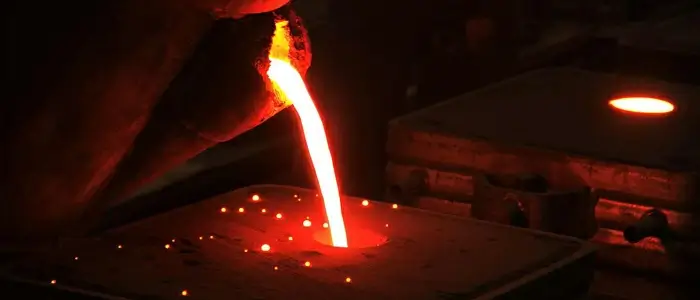

The pouring basin is the first point of contact between the molten metal and the gating system. Traditional conical basins create a vortex that draws air into the sprue.
Better design: Use an offset step basin, which:
-
Detains bubbles at the step, preventing them from entering the sprue
-
Allows proper filling of the sprue, ensuring it runs full from the start
This simple modification significantly reduces air entrainment at the very beginning of the pour.
Rule 7: Pressurized vs. Unpressurized—Choose Based on Alloy
The choice between pressurized and unpressurized systems should be driven by the alloy being cast:
For cast iron and heavy metals: Pressurized systems (total gate area < sprue area) are common. These systems maintain back pressure, keeping the system full and reducing aspiration. However, note that high casting pressure and throttling can create turbulence at the gates.
For oxidation-sensitive metals (aluminum, magnesium, ductile iron): Unpressurized systems (gate area > sprue area) are essential. The expanded cross-section slows the metal, minimizing the turbulence that would otherwise create oxide inclusions.
The narrowest cross-section in unpressurized systems should be located before the gates—either in the runner or at the sprue base.
Rule 8: Design Proper Runner Geometry
The runner distributes metal from the sprue to the gates. Several geometric considerations are critical:
-
Area expansion: When metal turns 90° from the vertical sprue to the horizontal runner, flow velocity decreases. To accommodate this and prevent backflow, the runner area should be expanded by a factor of approximately 1.4 (√2) after the sprue
-
Cross-sectional shape: Rectangular or trapezoidal runners are preferred over circular sections, as they slow the flow through friction and help trap dross
-
Runner extensions: Include a runner extension beyond the last gate—a “slag trap” that catches the first, dirtiest metal entering the system
Rule 9: Ensure Flow Balancing in Multi-Gate Systems
For castings requiring multiple gates, balanced flow through all gates is essential. Unbalanced flow leads to uneven filling, premature solidification in some regions, and defects in others.
Key factors affecting flow balance:
-
Gate geometry and position
-
Runner dimensions
-
Metal properties
Research comparing water models and actual cast iron flow reveals that different fluids have different dominant factors influencing multi-gate flow balancing. This underscores the importance of using simulation tools rather than relying solely on water-model experiments.
Modern design approaches use Taguchi analysis and ANOVA (Analysis of Variance) to identify the optimal combination of geometric parameters for balanced flow.
Rule 10: Validate with Simulation Before Cutting Tooling
Traditional gating design relied on experience, rules of thumb, and trial-and-error. Today, computational fluid dynamics (CFD) simulation is an essential validation step.
Modern simulation tools (such as FLOW-3D, MAGMAsoft, and Cast-Designer) can predict:
-
Filling time and flow patterns
-
Air entrainment and surface defect concentration
-
Temperature distribution and solidification sequences
-
Shrinkage porosity formation
-
Oxide film generation and bubble entrainment
Simulation allows engineers to evaluate multiple design alternatives virtually, optimizing the gating system before any tooling is cut. This reduces development time, material waste, and the risk of defective castings.
Research confirms that designs validated through simulation—particularly those incorporating Campbell’s principles—significantly reduce entrainment defects compared to basic systems.
Conclusion: The Cost of Getting It Wrong
The importance of proper gating design cannot be overstated. Inappropriate gating ratios lead to high rates of faults—sand inclusions, blow holes, gas holes, shrinkage, and misruns—while reducing productivity. Heavy, inefficient gating systems also waste material and energy.
Conversely, optimized gating design:
-
Reduces casting defects and improves quality
-
Enhances molten metal flow
-
Maximizes productivity and reduces costs
-
Minimizes resource use and waste, benefiting the environment
By following these ten rules—grounded in fluid mechanics, validated by simulation, and proven in practice—foundry engineers can design gating systems that reliably produce sound, high-quality castings.
