Here at SF-FOUNDRY, a question we’ve spent over a decade solving for premium investment casters worldwide is: “Why do my high-value castings keep failing NDT inspection due to microscopic inclusions, and how do I solve it permanently?”
Our answer, backed by thousands of successful pours, is always the same, “Friend, you may have overlooked the final, most crucial step in molten metal purification: choosing a truly efficient high -performance zirconia ceramic foam filter.”
This isn’t just a simple sales pitch. Through hundreds of trials and customer feedback, we’ve witnessed firsthand how our Zircona Filters can increase the pass rate of aircraft engine blades by over 15%.
Today, I’ll share my firsthand perspective, drawing on SF-FOUNDRY’s industry experience, to provide an in-depth analysis of why zirconia ceramic foam filters are an indispensable “quality guardian” in the precision casting industry.
What Affects the Quality in Precision Casting?
In the world of high-performance casting, where components are forged from nickel-based superalloys, cobalt alloys, or titanium, any non-metallic inclusion is a latent defect. These microscopic particles act as stress concentrators, leading to:
- Catastrophic fatigue failure under dynamic loading.
- Reduced corrosion resistance and premature part failure.
- Exorbitant scrap costs of complex, near-net-shape components.
Standard alumina filter or silicon carbide filters often can’t withstand the extreme temperatures and reactivity of these advanced melts, sometimes even becoming a source of contamination themselves.

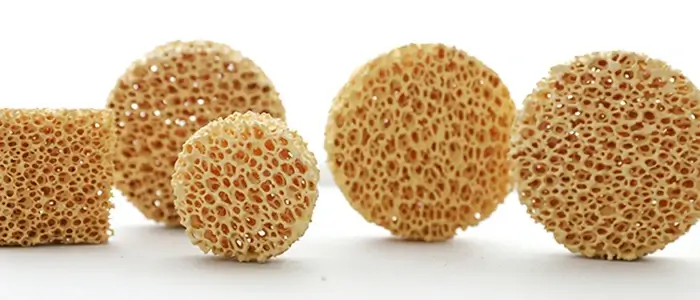

Why Zirconia Foam Filters Are The Superior Choice
At SF-FOUNDRY, we engineer our zirconia filters to outperform and outlast alternatives. Here’s why they are the ultimate solution:
-
Unmatched Thermal Stability (ZirconiaFilter Melting Point: 2700°C+)
Our Yttria-Stabilized Zirconia (YSZ) filters maintain structural integrity even when subjected to the extreme heat of titanium melts (over 1700°C). They will not soften, sag, or break down, ensuring consistent performance pour after pour. -
Superior Chemical Inertness
Molten titanium and superalloys are incredibly reactive. Our specially formulated zirconia is thermodynamically stable, guaranteeing it will not react with your melt and introduce harmful oxides or secondary inclusions. -
Exceptional Thermal Shock Resistance
Our proprietary manufacturing process creates a filter with high fracture toughness. It can withstand the massive thermal shock from preheating to contact with molten metal, dramatically reducing the risk of cracking during installation and pouring, which is a common failure point with inferior filters.
How Our Zirconia Filters Work in Your Casting Process: A Data-Backed Look
The value of our filters is delivered through three core mechanisms:
Deep Bed Filtration: The Ultimate Sieve
The intricate 3D structure of our foam filters acts as a depth filter, mechanically trapping and adsorbing inclusions down to the micron level. One of our clients casting IN718 reported a 70% reduction in micro-inclusion counts after switching to our 20 PPI zirconia filters.
Flow Rectification: Taming Turbulence
This is a critical, often overlooked benefit. Turbulent flow leads to air entrapment and mold erosion. Our filters transform chaotic, turbulent flow into a calm, laminar stream.
The Result: Significantly reduced reoxidation and dross formation. A customer producing precision stainless steel valves found that the laminar flow from our filters cut their gas defect scrap rate by nearly 50%.
Precision Casting Process Enhancement & Yield Optimization
Enable Faster Pouring Speeds: With cleaner metal, process engineers can push pouring parameters safely, increasing throughput.
Simplify Gating Design: An efficient filter can sometimes allow for a more streamlined gating system, improving yield.
How to Select The Right Zirconia Filter: An SF-FOUNDRY Checklist
Choosing the wrong filter can undermine your results. Follow our expert guidance:
-
Step 1: Match The Material
-
Titanium & Reactive Alloys: You must use Yttria-Stabilized Zirconia (YSZ). It is the only commercially viable option.
-
Superalloys / Stainless Steel: High-purity YSZ or Magnesia-Stabilized Zirconia are excellent choices, far surpassing alumina.
-
-
Step 2: Choose The Pore Size (PPI)
-
10/12 PPI: Ideal for primary filtration to capture large slag and clusters. Place it early in the runner system.
-
20 PPI: The most versatile choice for final filtration, offering the best balance of efficiency and metal throughput for most superalloy applications.
-
30 PPI: For ultra-fine filtration of aerospace-grade thin-wall castings. Requires careful gating design to manage flow resistance.
-
-
Pro Tip: Use Cascade Filtration
For mission-critical castings, we always recommend a “10 PPI + 20 PPI” combination. The coarse filter protects the fine filter, extending its life and providing ultimate metal cleanliness. This is a proven, best-practice standard for our top-tier aerospace partners. -
Step 3: Ensure Proper Usage
-
PREHEAT RELIGIOUSLY: The filter must be preheated with the shell to > 800°C to prevent thermal shock and metal freezing.
-
SECURE THE FIT: Design a precise filter pocket in your wax pattern to hold the filter snugly and prevent displacement during pouring.
-
SOURCE QUALITY: Internal cracks or weak spots are a failure point. Partner with a certified manufacturer like SF-FOUNDRY with rigorous quality control.
-
It’s an Investment, Not a Cost
We at SF-FOUNDRY understand that our zirconia filters represent a higher initial investment than standard options.
However, we urge you to view this through the lens of Return on Investment (ROI).
The cost savings from preventing just one scrapped high-value casting often pays for the entire batch of filters.
What you gain is higher yield, superior mechanical properties, more reliable processes, and, ultimately, a stronger competitive advantage.
Ready to eliminate inclusions and boost your casting quality? Contact the SF-FOUNDRY technical team today for a personalized consultation and free samples. Let us show you what a difference a truly advanced filter can make.
