In high temperature industrial fields, such as metallurgy, casting, glass manufacturing and other industries, accurate temperature measurement is the key to ensuring production efficiency and product quality. As an efficient temperature measurement tool, fast thermocouple has become indispensable equipment in these industries due to their fast response, high precision and easy operation. This article will deeply explore the working principle, structural composition, application scenarios and precautions of fast thermocouples, in order to provide valuable reference for practitioners in related fields.
Working principle of fast thermocouples
Fast thermocouples work based on the Seebeck effect, that is, a closed loop composed of two different metals will generate an electromotive force under a temperature gradient. Fast thermocouples determine temperature by measuring this electromotive force. Its core component is the thermocouple wire, which is usually composed of two different metals (such as nickel-chromium-nickel-silicon), and can respond to temperature changes in a very short time, thereby achieving rapid measurement.
Structural composition of fast thermocouples
- Thermocouple wire: This is the core part of the fast thermocouple, usually composed of two different metals, common types include K type, S type, B type, etc. The choice of thermocouple wire depends on the measurement temperature range and environmental conditions.
- Protective sleeve: The protective sleeve is usually made of ceramic or metal to protect the thermocouple wire from high temperature and chemical corrosion.
- Connecting wire: The connecting wire connects the thermocouple to the measuring instrument and transmits the electrical signal. The material and length of the connecting wire will affect the stability of the signal and the measurement accuracy.

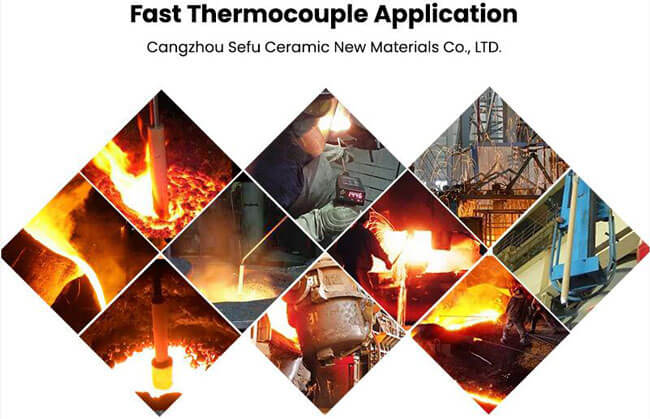

Application scenarios of fast thermocouples
- Metallurgical industry: In the metallurgical industry, fast thermocouples are widely used for rapid measurement of molten steel and molten iron temperature. By real-time monitoring of the temperature of molten metal, the smelting process can be optimized and product quality can be improved.
- Foundry industry: During the casting process, fast thermocouples are used to monitor the pouring temperature of molten metal to ensure the molding quality and performance of the casting.
Precautions for using fast thermocouples
- Calibration: Regularly calibrate fast thermocouples to ensure measurement accuracy. Calibration can be performed by comparing with a standard thermometer or using a calibration instrument.
- Protective sleeve: Select the appropriate protective sleeve material according to the measurement environment. For example, in high temperature and corrosive environments, high temperature and corrosion resistant materials should be selected.
- Insertion depth: Make sure that the thermocouple is inserted deep enough to obtain accurate readings. Insufficient insertion depth may cause measurement errors.
- Avoid contamination: Prevent the thermocouple wire from being contaminated and affecting the measurement results. During use, the thermocouple wire should be avoided from contact with contaminants.
Common types
- K-type thermocouple: Applicable to the temperature range of -200°C to 1300°C, widely used in industrial fields.
- S-type thermocouple: Applicable to the temperature range of 0°C to 1600°C, commonly used for high temperature measurement.
- Type B thermocouple: Applicable to the temperature range of 0°C to 1800°C, suitable for extremely high temperature measurement.
Conclusion
Fast thermocouples play an irreplaceable role in high temperature measurement. Its fast response, high precision and easy operation make it an ideal choice for industries such as metallurgy, casting, and glass manufacturing. Correct selection and use of fast thermocouples can not only improve production efficiency, but also ensure product quality. With the continuous advancement of technology, the performance and application range of fast thermocouples will be further expanded, bringing more convenience and value to the high temperature industrial field.
